An API gateway is a server that acts as an intermediary between clients and microservices in a distributed software architecture, often within a cloud environment. Serving as a reverse proxy, it handles client requests, routes them to the appropriate microservices and aggregates responses from multiple microservices into one response for the client. The API gateway also provides additional functionality, such as authentication, authorization, rate limiting, caching, and monitoring. By centralizing these functions, the API gateway simplifies the development, management, and scalability of microservices-based applications.
API gateways are traffic conductors. They facilitate interactions between client applications and backend services. Operating as an intermediary between application programming interfaces (APIs) and their clients, the API gateway serves as the enforcement point for policies at runtime. This control includes how the gateway accepts API calls, routes requests to the appropriate services, aggregates results for responses, and translates protocols.
Gateways also handle tasks like API authentication, rate limiting, and logging. By governing end-to-end access, transforming data and facilitating analytics, the API gateway earns a place in an organization’s API management strategy.
The API gateway offers a unified point of access to the distributed architecture of cloud-native microservices. By orchestrating interactions, steering traffic, and providing a layer of abstraction, the gateway simplifies the client's view of the backend. Its primary role lies in encapsulating the internal microservices and system architecture and exposing a set of tailored APIs to the client.
From the API call and response to performance and API protection, fulfilling its multifaceted role involves many steps.
Request Handling and Routing
When a client sends a request, the API gateway receives it and inspects the HTTP method, headers and URI to determine the target microservice. The gateway uses preconfigured routing rules to forward the request to the appropriate microservice instance. This process often involves load-balancing algorithms, such as Round Robin or Least Connections, to distribute the requests among the available instances.
Protocol Translation
API gateways can perform protocol translation between clients and microservices, allowing them to communicate using different protocols. A client might send a request using HTTP/REST, for example, which the gateway translates into a gRPC or message queue-based request before forwarding it to the target microservice.
Authentication and Authorization
API security is a crucial aspect of API management. The API gateway can act as a centralized point for implementing authentication and authorization mechanisms. It can integrate with identity providers (e.g., OAuth, OpenID Connect, SAML, or JWT) to validate incoming requests and ensure that clients have permissions to access the requested resources.
Rate Limiting and Quotas
To protect microservices from excessive load or abuse, the API gateway can enforce rate limits and quotas on incoming requests. Developers can establish this based on the client Internet Protocol, API key, user account, or other factors.
Response Transformation and Aggregation
The API gateway can modify and aggregate responses from multiple microservices before sending them back to the client. This includes transformations like adding, removing, or renaming fields in the response payload, converting data formats (e.g., XML to JSON), and aggregating data from multiple microservice responses into a single response object.
Caching
The API gateway can cache responses from microservices to reduce latency and improve performance. By storing frequently accessed data in-memory, the gateway can quickly respond to client requests without needing to repeatedly query the same data from the microservices.
Monitoring, Logging and Analytics
The API gateway can log incoming requests, responses, and errors, which provide valuable analytics data. This information can help system administrators and developers identify performance bottlenecks, detect security incidents and ensure the overall health of the system.
Resilience and Fault Tolerance
API gateways can implement resiliency patterns such as circuit breakers, retries, and timeouts to handle failures in the underlying microservices. In case a microservice instance becomes unresponsive or fails, the gateway can automatically redirect requests to other available instances, ensuring high availability and fault tolerance.
Without an API gateway, developers would need to expose microservices to incoming requests and let the microservices determine how to respond. Imagine the resources needed for each microservice to decide whether to respond — on a scale of multiple microservices per application and countless requests.

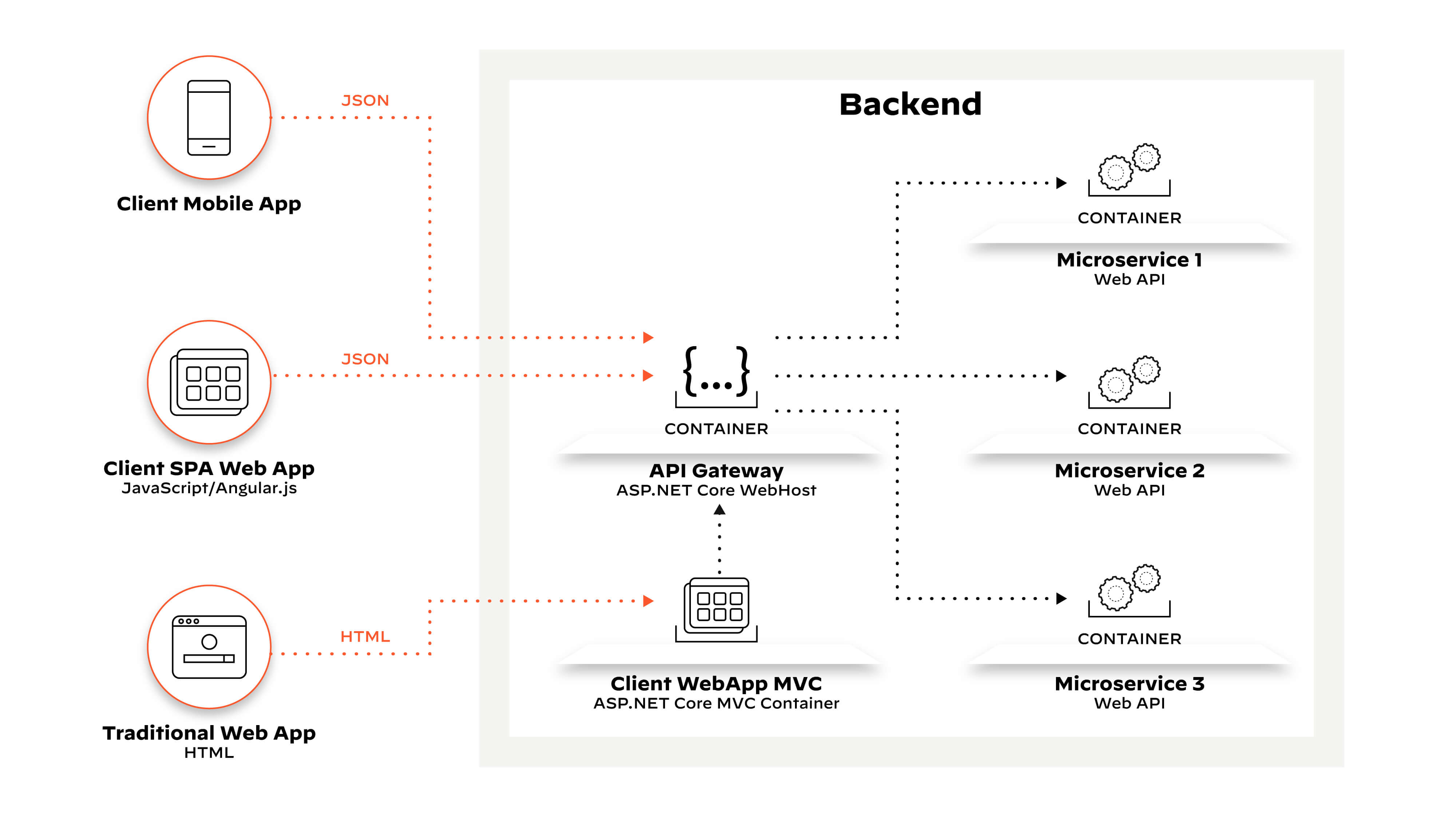

The API gateway is a building block in microservices architectures, facilitating their decoupling nature and enhancing independent scalability and resilience.
Acting as a façade, the gateway offers one entry point and a standardized interface that shields clients from the complexities of the underlying microservices. The gateway can tailor protocols to each microservice while presenting a consistent API to clients. It can also simplify client-side logic by translating between API styles — HTTP REST, gRPC, GraphQL — and aggregate responses from multiple services into a single response.

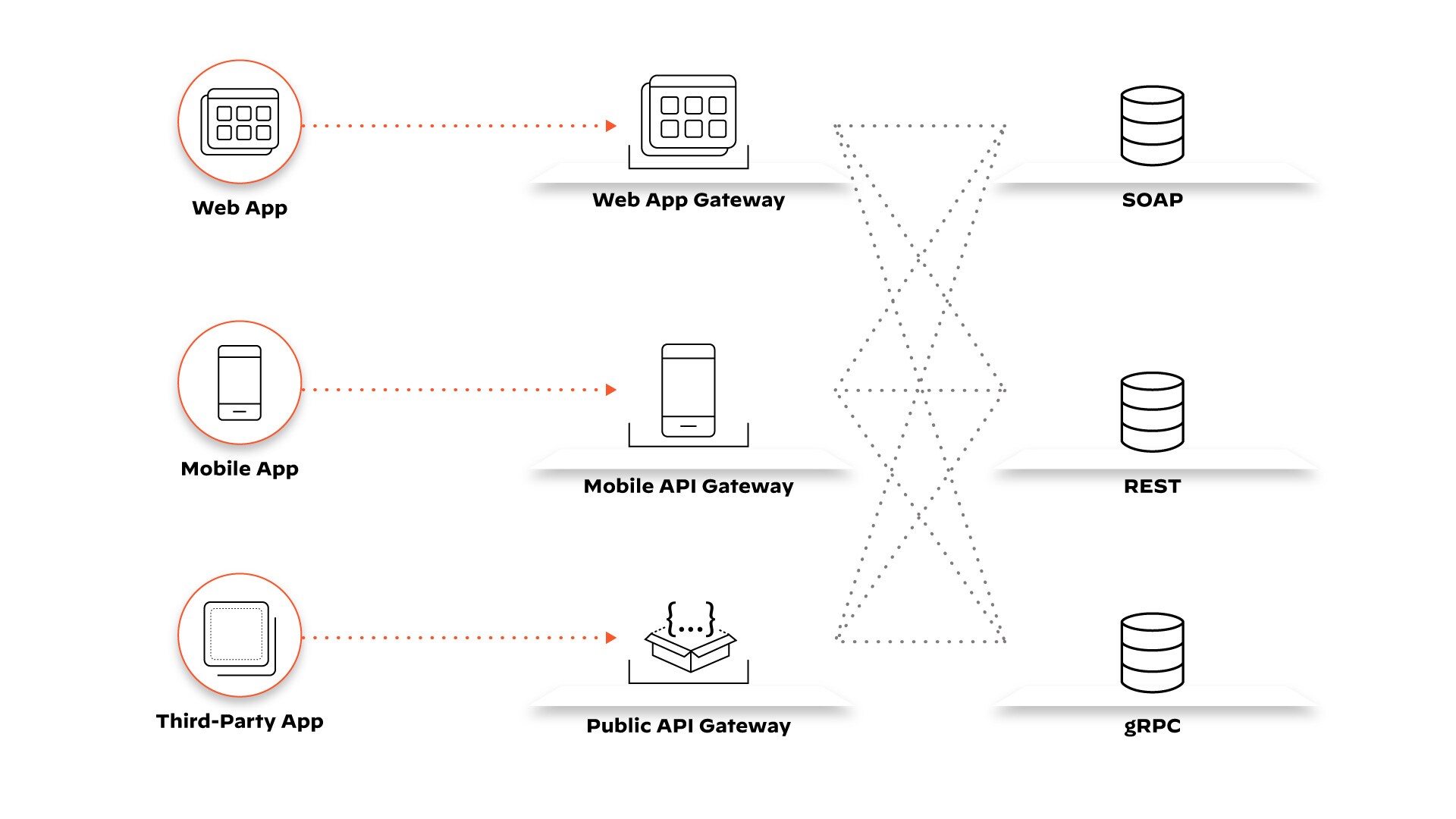

The API gateway pattern defines an approach where a server acts as a single-entry point for different types of clients — web, mobile, desktop — accessing a system comprising numerous microservices. The pattern aims to encapsulate the system's architecture by simplifying the client's interaction and reducing the number of requests and amount of data that needs to pass between client and server.
The gateway routes client requests to the appropriate services within the system. By doing so, it hides the complexity of the system's internal structure from the client and reduces the client's need to manage multiple service endpoints.
The API gateway pattern can aggregate responses from multiple services into one response to minimize the number of round-trip requests between the client and the server. This helps to improve efficiency and reduce latency.
The gateway handles cross-cutting concerns applicable across various services. Concerns can include logging, metrics, rate limiting and security. By managing them at the gateway level, it offloads these tasks from individual services, allowing them to focus on their core business logic.
While API gateways generally increase efficiency, they can introduce latency. The added processing steps for tasks like request routing, composition, and protocol translation can increase response time. Optimizing the performance of the API gateway will prevent it from forming a bottleneck.
If not designed for scalability, API gateways can create dependencies, hindering the independent deployment and scalability of microservices. When all traffic has to pass through the gateway, it may limit the velocity and autonomy that a microservices architecture usually enables.
Implementing an API gateway adds another layer of complexity to the system. Configuration, maintenance, and the ongoing development of the gateway require effort and expertise, which might increase overhead on the team, especially for smaller projects.
While an API gateway can enhance security, it can also pose risks if compromised. Because it's a single point of entry to the system, any security breach could expose the underlying services. Careful design and implementation of security controls are imperative to mitigate risks.
The architecture of the API gateway poses another challenge — availability. Given its role in handling all incoming API calls, any downtime can impact the system. Ensuring high availability, redundancy, and fault tolerance of the API gateway gains importance in a production environment.
API gateways serve diverse use cases across different architectural environments, playing a notable role in shaping the behavior of applications, particularly in distributed architectures.
As these architectures proliferate numerous discrete services, coordinating interactions and routing requests becomes convoluted. An API gateway can streamline the process, handling request routing, composition, and protocol translation. It stands at the frontline, directing incoming API calls to backend services.
And as mentioned, by serving as a single entry point into the system, the API gateway can offer a layer of defense to fortify the security of microservices. It can enforce policies like SSL termination, access control and IP whitelisting, eliminating the need for each microservice to implement these measures. This arrangement simplifies the security landscape and reduces the potential for errors and vulnerabilities.
An API gateway can authenticate user or system credentials, ensuring that only authorized entities can access the services. It supports different authentication mechanisms, such as OAuth or JWT, which offloads this responsibility from individual microservices and promotes better security practices.
API gateways can perform request validation to ensure only correctly formatted data enters the system. By rejecting invalid requests at the gateway, it lightens the load on individual microservices, allowing them to focus on their primary functions.
In the context of serverless architectures, API gateways take on additional significance. With backend services running on demand, the API gateway needs to manage invocation requests for these functions. It also provides a buffer against the cold-start latency inherent in serverless environments.
API gateways also play a role in managing the lifecycle of function-based services, including their invocation, scaling, and performance monitoring. They also handle version control, deployment, and staging, helping to streamline the function-as-a-service (FaaS) model that underpins serverless computing.
In commercial settings, API gateways can manage billing and metering for API usage. They can track the number of requests each client makes and can enforce usage quotas and limits, which allows for a granular understanding of API usage and supports a usage-based billing model.
API gateways can take advantage of caching. By storing the response of a service request, the gateway can serve repeated requests for the same data, improving response times and reducing the load on backend services. It can also implement response compression to reduce bandwidth consumption and improve network efficiency.
Use cases extend to the modernization of legacy systems. An API gateway allows organizations to wrap legacy applications in modern, RESTful APIs. This technique enables these legacy systems to interact with modern applications and services without extensive refactoring.
In DevOps practices, an API gateway forms a crucial bridge between development and operations teams by establishing a unified front for all the microservices. It promotes continuous integration and delivery by ensuring that API changes and deployments do not negatively affect the system's overall operation.
While both a service mesh and an API gateway manage interservice communication, their focus areas differ. A comprehensive microservices strategy often includes both an API gateway and a service mesh.
Acting as a reverse proxy, the API gateway deals with client-to-services communication, or north-south traffic. The service mesh provides service discovery, load balancing, failure recovery, metrics and monitoring through service-to-service communication, or east-west traffic.
A load balancer and an API gateway have overlapping functions, but their primary objectives diverge.
A load balancer distributes network traffic across multiple servers to enhance responsiveness and availability. Operating at the transport layer, it distributes load based on policies and the health of backend servers.
An API gateway operates at a higher level, focusing on application logic. It handles routing, aggregation, protocol translation and security. While it also can distribute requests among services, its features surpass those of a typical load balancer, encompassing application-level concerns and policies.
API gateways and web application firewalls (WAFs) play distinct yet interconnected roles in the security and efficiency of web applications.
The API gateway focuses on ensuring the correct use of APIs by enforcing valid request structures and authenticating and authorizing clients. It can block requests that don't meet criteria, but it usually can’t inspect the content of the requests for patterns matching known attack vectors.
The WAF operates as a protective barrier for web applications, intercepting and inspecting HTTP traffic to identify and block threats. By using predefined security rules and anomaly detection, the WAF can prevent SQL injection, cross-site scripting (XSS), distributed denial-of-service (DDoS), and other types of attack. Its rules can also be updated to guard against newly discovered vulnerabilities and attack methods, which makes the WAF a vital line of defense against web application attacks.
In practice, using an API gateway with a WAF provides a layered security approach. The API gateway manages interactions with the API, while the WAF provides an additional security layer against malicious activity. Together, they offer a powerful combination of application management and API security.
Organizations have several deployment options for API gateway, depending on the requirements and infrastructure of their applications.
When exploring your API gateway options, look for a solution that meets your application's requirements. Consider factors like scalability, extensibility, and integration with existing infrastructure and services. Popular solutions include:
Amazon API Gateway
A fully managed service from Amazon Web Services (AWS), Amazon API Gateway handles all aspects of API management and traffic management. It supports WebSocket and REST APIs, has built-in DDoS protection, integrates with AWS services like Lambda and DynamoDB, and can scale to any volume of traffic.
Azure API Management
This Microsoft offering includes an API gateway, developer portal, and a variety of tools for defining and managing APIs. It offers features like throttling, routing, caching, identity provider integration and analytics.
Kong
An open-source API gateway and platform built on top of NGINX, Kong offers extensibility through a rich plugin ecosystem that includes integration with various databases and services. Kong also provides load balancing, authentication, rate limiting, and health checks.
Apigee
Apigee by Google Cloud provides a full-featured API platform that includes an API gateway, developer portal and tools for API design, monetization, security, analytics, and operations.
MuleSoft Anypoint Platform
An integration platform that includes API gateway functionality, MuleSoft Anypoint Platform offers features like security, caching and load balancing, along with integration and orchestration capabilities.
Follow leading practices for optimal gateway performance.
Implement security best practices: Ensure that your API gateway is configured to enforce authentication, authorization, and encryption to protect your microservices from unauthorized access and potential security threats.
Monitor and log API traffic: Collect logs and metrics from your API gateway to gain insights into the performance, availability, and security of your microservices. Use this data to identify issues, optimize performance, and detect potential security threats.
Optimize performance: Configure caching, rate limiting, and load balancing in your API gateway to improve the performance and reliability of your microservices.
Plan for scalability: Design your API gateway to accommodate growth in your application's user base and the number of microservices it supports. Consider using cloud-based or serverless deployment options for better scalability.
Maintain API documentation: Keep your API documentation up to date and easily accessible for developers and clients, ensuring they have the information needed to interact with your microservices effectively.
Implement versioning: Allow versioning in your API gateway to manage changes and updates to your microservices without breaking existing clients.
Use health checks and monitoring: Regularly monitor the health and performance of your API gateway and microservices, setting up alerts and notifications to quickly detect and address issues.
Adopt a DevOps/DevSecOps culture: Encourage collaboration between development, security and operations teams, ensuring that security and performance standards are integrated throughout the application lifecycle.
API transformation refers to the process of modifying or converting the structure, format, or content of data exchanged between an API and its consumers. Transformation allows for communication and interoperability between different systems or applications that may have varying data requirements.
In the context of APIs, transformation typically involves modifying the payload or data representation format, such as converting XML to JSON or vice versa, altering the data structure or performing data validation and enrichment. It can also include tasks like data mapping, protocol translation, or encryption/decryption.
API transformation plays a crucial role in ensuring compatibility and efficient data exchange between the API provider and consumers, especially when dealing with heterogeneous systems or when adapting to different standards or protocols.
